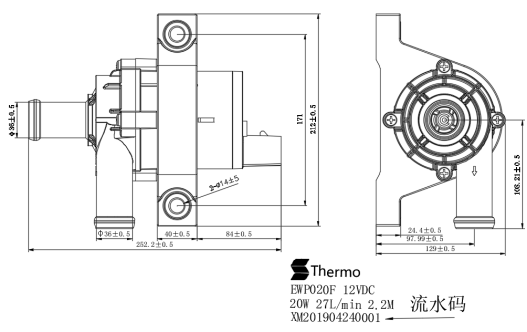

EWP020F Electronic water pump

Voltage: 12V DC

Current: 1.67A

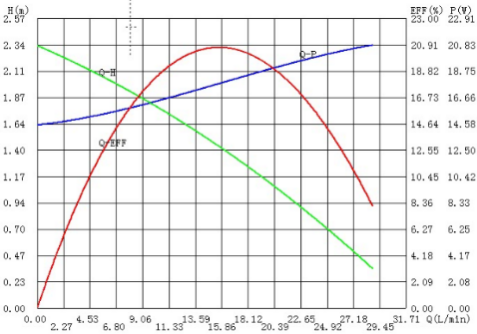

Lift: 2.2±0.3m

Flow: 27(1±10%)L/min

IP rating: IP67

Noise: ≦45dB max@0.5m

Insulation level: Class F (155℃)

Lifespan: ≧ 20000 H

Ambient temperature: -40℃~100℃

Features:

Adopting brushless motor structure, long life and reliable performance

PWM speed regulation and fault feedback function design

Premium design for use in harsh climates

Application:

New energy vehicle motors, batteries, electronically controlled cooling cycles, automotive air conditioning cycles, charging piles and motorcycles, etc.
